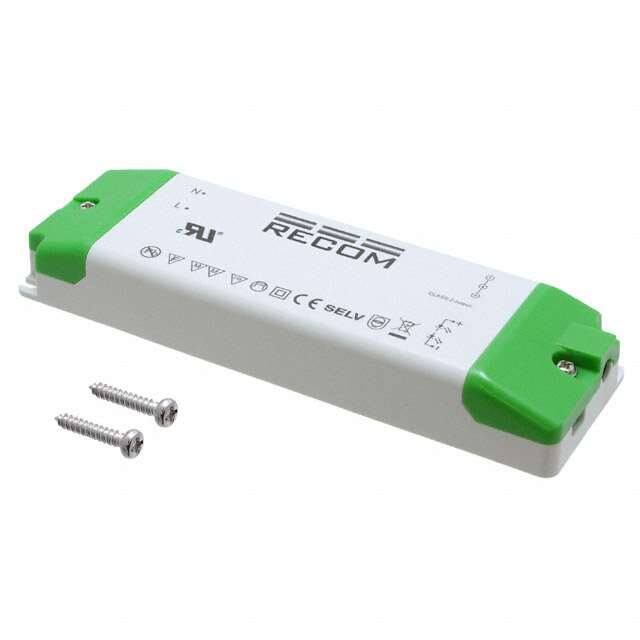

Package / Case

100

Mount

Chassis Mount, Screw

Mounting Type

Chassis Mount

Number of Pins

2

Weight

0.369lb 167.38g

Power - Output (Max)

30W

Voltage-Output 1

24V

Voltage Rated

370V

Operating Temperature

-20°C~50°C

Series

LIGHTLINE RACV30 (30W)

Size / Dimension

6.30Lx1.97W x 0.87 H 160.0mmx50.0mmx22.0mm

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

Not Applicable

Number of Terminations

6

Termination

Screw

ECCN Code

EAR99

Type

Constant Voltage

Max Power Dissipation

30W

Terminal Form

UNSPECIFIED

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Number of Functions

1

Depth

50mm

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Termination Style

Screw Terminal

JESD-30 Code

R-PXFM-X6

Number of Outputs

1

Approval Agency

CE, cULus, EN

Efficiency

84%

Voltage - Isolation

3kV

Voltage - Input (Max)

264VAC

Output Voltage

24V

Max Output Current

1.25A

Voltage - Input (Min)

90VAC

Input Voltage-Nom

115V

Trim/Adjustable Output

NO

Current - Output

1.25A

Output Power

30W

Max Output Voltage

24V

Topology

AC DC Converter

Current - Output 1

1.25A

Features

OCP, OTP, SCP

Height

22mm

REACH SVHC

No SVHC

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
